Compressor Filter Supply, LLC
Non-branded replacement filters and housings for hydraulic and industrial applications. Our products meet or exceed OEM specifications in form, fit, and function.
Industries served: Agriculture • Construction • Gearboxes • Mining • Offshore • Rail • Shipbuilding • Steel / Heavy Industry
Fast facts
- Vision: OEM performance at a fraction of OEM cost.
- Docs: Specs on request with quotes + shipping documents.
- E-commerce: Pricing & availability + ordering.
Payments
Major credit cards (Visa, Mastercard, Discover, AmEx), T/T wire transfer, or Net Terms (US clients with credit application).
Shipping (US)
FOB: Shipping Point.
Shipping (International)
Pre-paid WT or CC. Commonly FedEx Intl Economy or USPS Express.
Documents provided: CoC, CoO, Commercial Invoice, Air Waybill.
We provide filtration in multiple medias and micron ratings, tested to internationally recognized ISO standards.

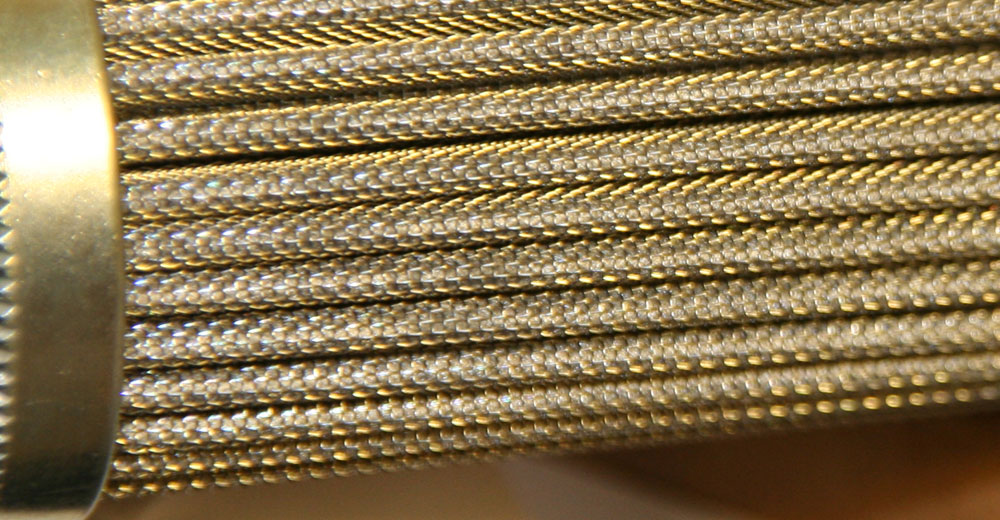

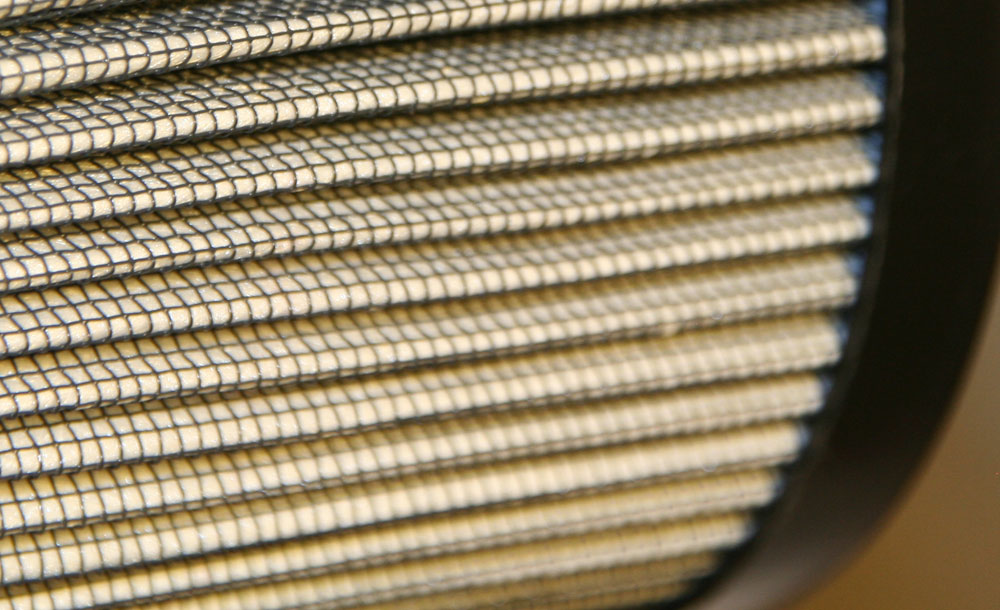

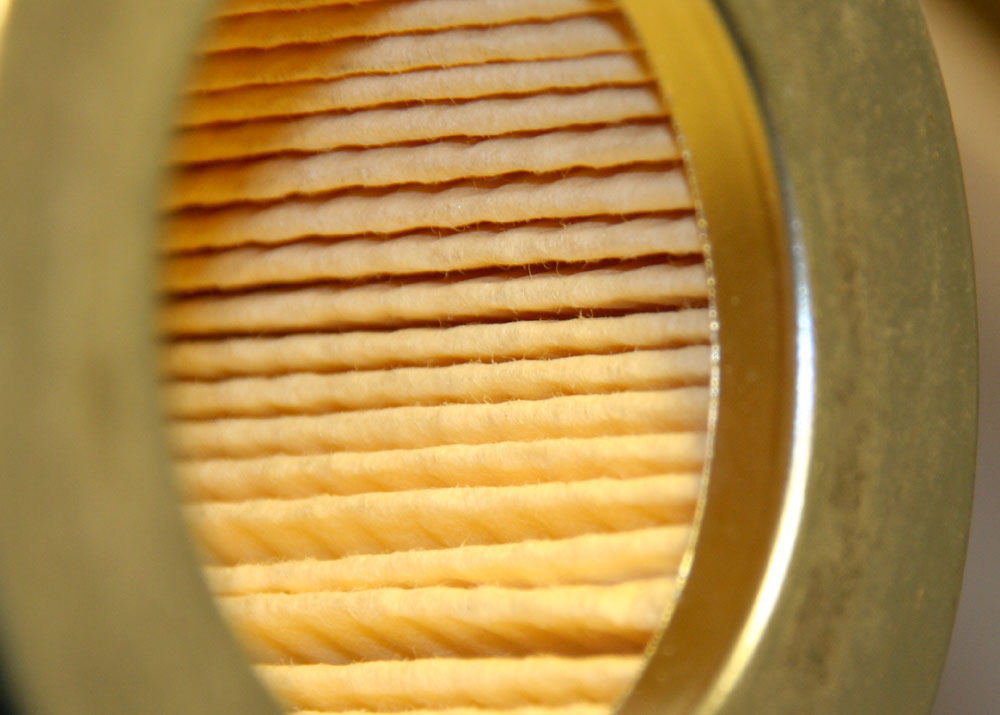

| Resin impregnated cellulose | Microglass | Stainless steel wire mesh |
|---|---|---|
|
Micron ratings: 03, 10, 25 (Betax=2) |
Micron ratings: 01, 03, 06, 10, 25, 40 (Betax=200) |
Micron ratings: 10, 25, 60, 125, 200, 250 (No Beta rating) |
|
|
|

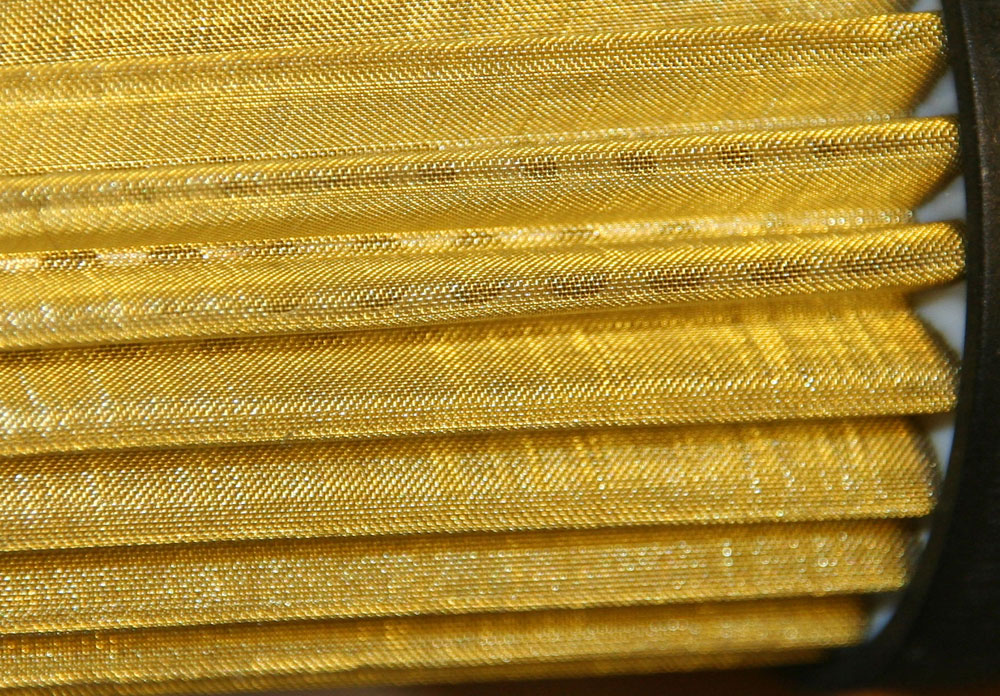

Also available: carbon steel wire mesh, water absorbent media.
Seal materials: Buna-N (default) for mineral oils; Viton optional for synthetic oils.
Typical materials: Zinc plated carbon steel end caps/cores; stainless optional. Pressure drop charts available (ISO 3968).
Seal materials: Buna-N (default) for mineral oils; Viton optional for synthetic oils.
Typical materials: Zinc plated carbon steel end caps/cores; stainless optional. Pressure drop charts available (ISO 3968).
Suction Strainers
Located at pump inlet to remove contamination before it reaches the pump/components.
Typically include internal bypass to prevent starving the pump.
Pressure Filters
Downstream of the pump, exposed to full system pressure. Protects sensitive components; “point-of-use” options available.
Return Line Filters
Upstream of reservoir. Removes contamination generated/ingested by pump and components before fluid returns.
Spin-On Filters / Assemblies
Used for suction and return lines in hydraulic systems.
- Bubble point test: indicates largest pore size under specified conditions.
- Patch test: visual microscope analysis via fine media patch.
- Particle counter: particle count and cleanliness classification.
- Lab analysis: viscosity, water content, particle count, trending graphs, recommendations.
- Multi-pass test: Beta ratio/micron rating and dirt holding capacity (ISO 16889).
Ready to quote?
Use our Quote / Cart system or contact us with your part numbers.
